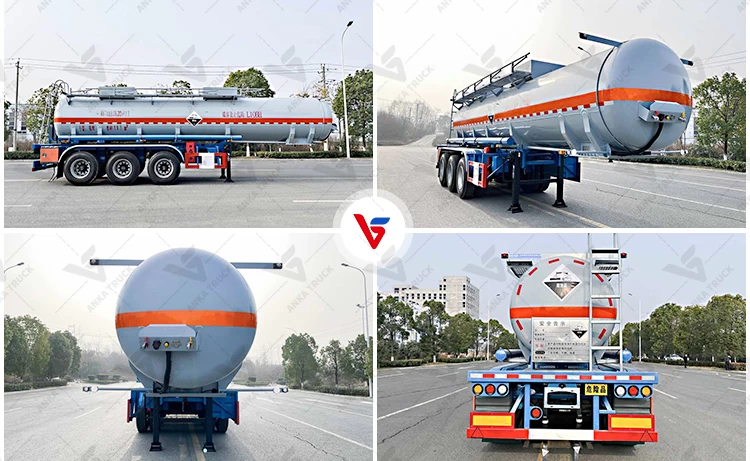

18,300L Tank Trailer on Caustic and Pickling Duty
-
When You'll Get It:Jan 05 - Jan 09
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
Some duty rosters are written around one product and one route per week. Others change with the batch: dense sulphuric acid on Monday, warm caustic on Wednesday, rinse water in between, and never the luxury of a dedicated wash-out. A trailer earns its place in the second kind of fleet.
Technical Specifications
- BOUNDARY DIMENSION (MM)
- 12800×2550×3800
- TANK VOLUME (M³)
- 18.3
- TANK MATERIAL
- Q235 Carbon Steel + 16 mm PE Lining
- TANK CODE
- L10BH
- MOUTH OF TANK
- Two (with breather valves)
- DISCHARGE OPENING
- Lined bottom pipe + fluorine-lined ball valve + quick coupling
- MAX GROSS MASS (KG)
- 40000
- NUMBER OF AXLES
- 3
- AXLE LOAD (T)
- 3 × 13 t (BPW optional)
- TYRE SPECIFICATION
- 12 × 12R22.5 tubeless
- SUSPENSION
- Leaf spring (air suspension optional)
- BRAKE SYSTEM
- WABCO valve set + ABS + emergency air-loss brake
Standard Components Details
Vacuum pressure reducing valve
Discharge valve
Discharge box fire extinguisher
Anti-Corrosion Tank Body
Tank lining plastic process
Bottom emergency shut-off valve
Application Scenarios
Chemical Liquid Tank Truck Application scenarios
Our Chemical Liquid Tank Truck Widely used in chemical, petroleum, pharmaceutical, coating, environmental protection and other industries, suitable for:
Transportation of corrosive liquids such as strong acid, strong alkali and salts
Transportation of flammable and explosive media such as organic solvents, oils and resins
Transportation of non-hazardous liquids such as food-grade liquids, water purifiers and water reducers
Medium and long-distance transportation in industrial parks, ports, chemical plants, logistics centers, etc.
Factory Display
Where a site needs more, the order sheet allows BPW hub sets, air suspension, an all-polypropylene or 316L vessel, two to four internal compartments for media that must not mix, contents and pressure dials with an overfill warning, or a lined pump for load-and-unload duty. Hardware is only half of it: our plant also issues a bonding diagram, a change-over valve sequence and placard templates for the consignor. Inspection intervals go into the hand-over pack, with wall-thickness readings logged at our yard and a lining check recorded before release. Tell us what the trailer will carry, over which route and in what volumes; hull specification, gasket selection and the export dossier are confirmed once the order is placed.
Packing and Delivery
*Packing--Waxed or nude, covered with tarpaulin. *Shipping--Small units ship in 20GP, 40GP or 40HQ containers; larger units ship break-bulk, by bulk carrier or Ro-Ro, or as you require.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
