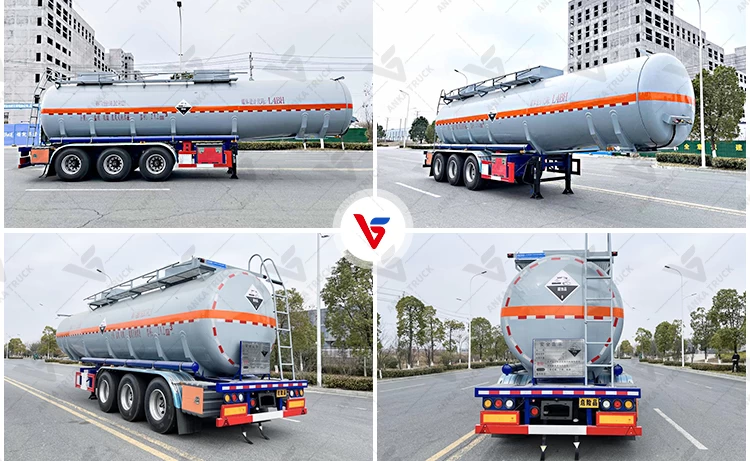

30CBM Acid Tank Trailer Serving Inter Plant Corridors
-
When You'll Get It:Jan 04 - Jan 08
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
A road tanker spends its life tied to one tractor; a trailer does not. This 30 cubic metre acid unit couples to whatever prime mover the fleet already runs - two-inch JOST kingpin, 28 tonne two-speed landing legs, standard pneumatic and electrical couplers - so capacity can be added without buying another complete rig.
Technical Specifications
- Curb Weight(Kg)
- 8200~8600
- Boundary Dimension(mm)
- 11600×2550×3750
- Tank Volume(m³)
- 30
- Tank Material
- Q235 Carbon Steel 6 mm + 16 mm LLDPE Lining（steel-lined PE）
- Mouth of tank
- Two Φ500 lined manholes
- Discharge Opening
- Bottom PTFE-lined emergency shut-off valve + 2 × DN100 lined ball valves（rear）
- AXLE (T): 3 × 13 t FUWA（BPW optional）
- 3 × 13
- Number of Axles
- 3
- TANK CODE
- L4BH (ADR)
Standard Components Details
Vacuum pressure reducing valve
Discharge valve
Discharge box fire extinguisher
Anti-Corrosion Tank Body
Tank lining plastic process
Bottom emergency shut-off valve
Application Scenarios
Chemical Liquid Tank Truck Application scenarios
Our Chemical Liquid Tank Truck Widely used in chemical, petroleum, pharmaceutical, coating, environmental protection and other industries, suitable for:
Transportation of corrosive liquids such as strong acid, strong alkali and salts
Transportation of flammable and explosive media such as organic solvents, oils and resins
Transportation of non-hazardous liquids such as food-grade liquids, water purifiers and water reducers
Medium and long-distance transportation in industrial parks, ports, chemical plants, logistics centers, etc.
Factory Display
A fire bracket, earth reel, hazard placards and the L4BH stencil finish the outfit; papers for ADR, BV or DOT inspection can be arranged. Buyers may add split bays for two products, a product pump, pneumatic springs, BPW running gear, EU-pattern hatches with the complete ADR set, and paint in their own colours. Tell us the product, the corridor and the tractor; liner grade and certificates are locked in before the first seam is welded.
Packing and Delivery
*Packing--Waxed or nude, covered with tarpaulin. *Shipping--Small units ship in 20GP, 40GP or 40HQ containers; larger units ship break-bulk, by bulk carrier or Ro-Ro, or as you require.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
