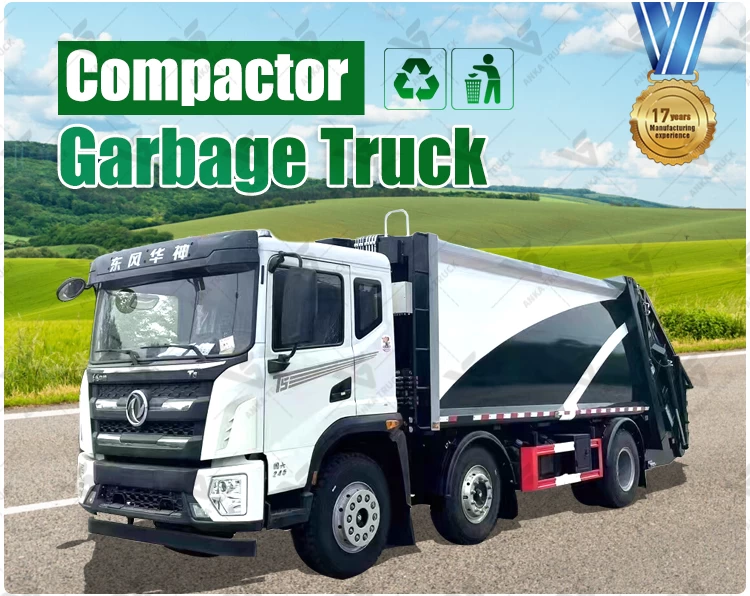

DONGFENG 22CBM Heavy Compactor Truck for Bulk Landfill Transfer
-
When You'll Get It:Jan 07 - Jan 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
DONGFENG 22CBM Heavy Compactor Truck for Bulk Landfill Transfer
Engineered for central waste consolidation hubs, long-distance landfill haulage, and major municipal transfer operations, the DONGFENG 22CBM Heavy Compactor Truck provides industry-leading bulk refuse compaction. Built upon a rugged 25,000 kg gross weight 3-axle chassis powered by a heavy-duty 290HP turbo diesel engine, it easily undertakes continuous high-tonnage highway and landfill hauling. The massive 22m³ body is precision-welded from reinforced Q345 manganese steel with an integrated curved shell, driven by a high-pressure bidirectional slide-and-scraper hydraulic mechanism (≤30s cycle) achieving up to a 4:1 compaction ratio.
Technical Specifications
- Kerb Weight (Kg)
- 14780
- Overall Dimensions (mm)
- 10300×2520×3300
- Box Volume (m³)
- 22
- Box Body Material Quality
- T355 Manganese Steel
- Sewage Tank Capacity (L)
- 1600
- Operating Mode
- Automatic+Manual
- Maximum Speed (km/h)
- 88
- Brand Name
- Dongfeng
- Fuel Type
- Diesel
- Engine Power（kw）
- 169
- Front Axle/Rear Axle (t)
- 5/Double 10
- Gearbox Model
- 8-Speed Manual
- Number of Axles
- 3
- Wheelbase (mm)
- 4350+1350
- Number of Tires
- 10
Standard Components Details
Rear Loader Option
❶ Arm Swing Loader
❷ Rear Triangular Bucket Loader
❸ Bin Lifter Loader
❹ Full Floor Loader

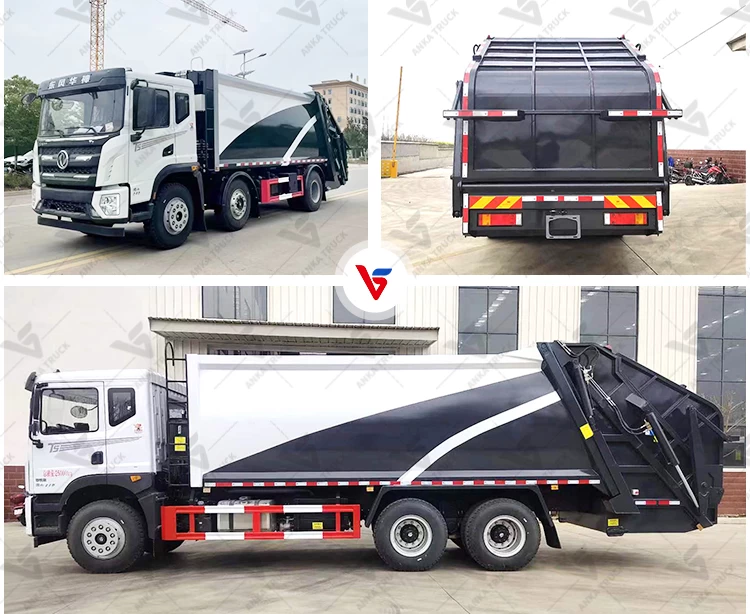

Factory Display
To guarantee total environmental containment during long-distance inter-city transit, the compactor is outfitted with an oversized 2,000L dual sewage recovery system featuring heavy-duty sealed drainage valves. Fleet operators benefit from dual electric push-button control boxes and independent manual hydraulic override levers for all-weather heavy-duty reliability. We provide heavy-duty rear hopper attachments compatible with 120L–1,100L EN840 standard plastic containers and large bulk skip loaders. Please share your central transfer station parameters, long-haul landfill distances, or tender specifications, and our engineering team will configure the ideal heavy-duty chassis and body layout for your operations.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
