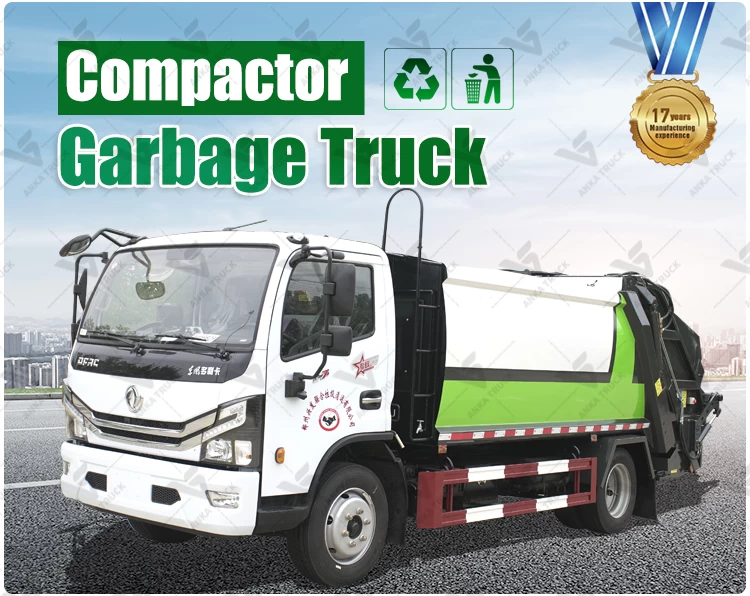

DONGFENG 8CBM Refuse Truck for Downtown Walkways
-
When You'll Get It:Jan 07 - Jan 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
DONGFENG 8CBM Refuse Truck for Downtown Walkways
Optimized for bustling commercial walkways, municipal park grounds, and dense downtown streets, the DONGFENG 8CBM Refuse Truck delivers rapid waste clearance with excellent city maneuverability. Assembled on a compact 10,000 kg gross weight chassis driven by a responsive 140HP turbo diesel engine, it easily navigates narrow urban avenues and tight corners. The 8m³ compactor body is crafted from high-strength Q345 manganese steel featuring an integrated curved shell, driven by a rapid hydraulic slide-and-scraper mechanism (≤20s cycle) achieving up to a 3.5:1 volume reduction ratio.
Technical Specifications
- Kerb Weight (Kg)
- 6750
- Overall Dimensions (mm)
- 7500×2350×2750
- Box Volume (m³)
- 9
- Box Body Material Quality
- T355 Manganese Steel
- Sewage Tank Capacity (L)
- 1000
- Operating Mode
- Automatic+Manual
- Maximum Speed (km/h)
- 103
- Brand Name
- Dongfeng
- Fuel Type
- Diesel
- Engine Power（kw）
- 121
- Front Axle/Rear Axle (t)
- 2.7/5.5
- Gearbox Model
- 6-Speed Manual
- Number of Axles
- 2
- Wheelbase (mm)
- 3800
- Number of Tires
- 6
Standard Components Details
Rear Loader Option
❶ Arm Swing Loader
❷ Rear Triangular Bucket Loader
❸ Bin Lifter Loader
❹ Full Floor Loader

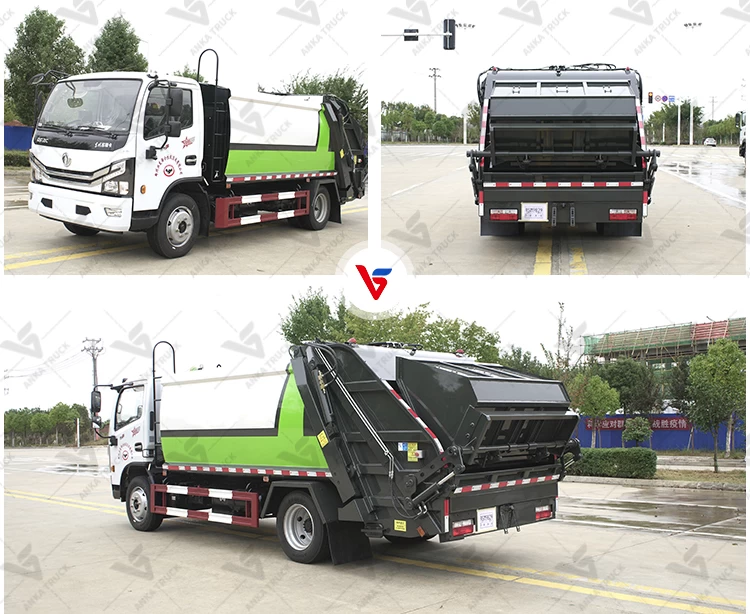

Factory Display
To maintain clean, odor-free pedestrian walkways during frequent curbside stops, the vehicle is fitted with an integrated 800L wastewater collection system with leak-tight drainage ball valves. Sanitation workers enjoy simple, safe operation via the rear electric push-button station and independent manual hydraulic override levers. We provide tailored lifting attachments compatible with 120L, 240L, and 660L EN840 standard plastic bins and commercial roll-out carts. Please share your commercial container types, daily route tonnage targets, or tender specifications, and our dedicated engineering team will configure the ideal chassis and body layout for your downtown operations.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
