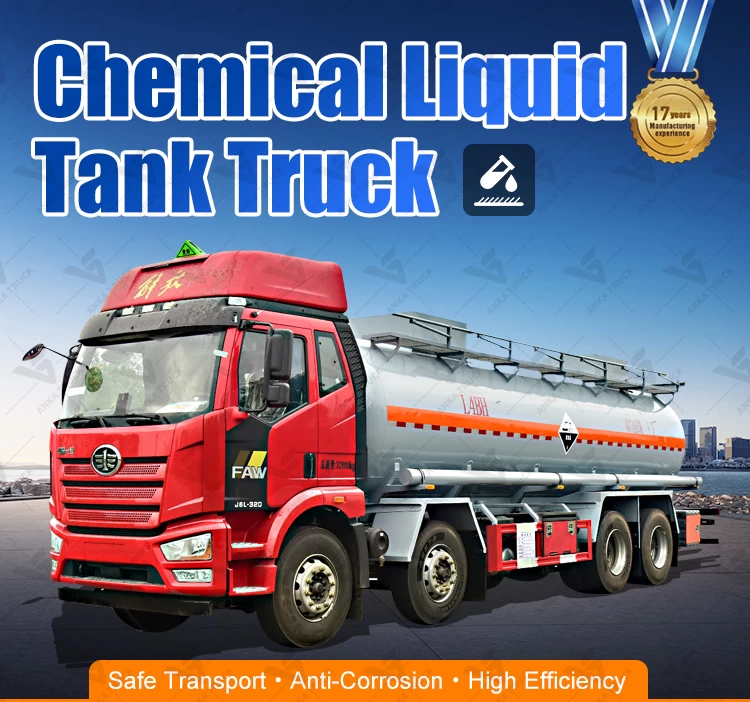

FAW 8x4 20CBM Corrosive Chemical Tank Truck
-
When You'll Get It:Jan 04 - Jan 08
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
Corrosive media punishes a tank quietly. The barrel that looked clean at handover is the one pitting along the welds two seasons later, and by then the compliance paperwork is already a problem. This FAW J6L 8x4 chemical tank truck is specified around the liquid rather than the price list: 20,000 litres of PE-lined carbon steel carried on a 31-tonne 8x4 chassis, powered by a 320 hp Xichai diesel and a ten-speed manual. The L4BH tank code and a complete Class 8 safety package describe the barrel itself — liquid service, four-bar calculation pressure, bottom filling and discharge, hermetically closed — so an inspector reads the intent before the first manhole is opened.
Technical Specifications
- Curb Weight(Kg)
- 12205
- Boundary Dimension(mm)
- 11050×2550×3480
- Tank Volume(m³)
- 18
- Tank Material
- Q235 Carbon Steel
- Mouth of tank
- One/Tow
- Discharge Opening
- Lined With Four-Fluorine Ball Valve
- Maximum Speed（km/h）
- 79
- Trade Name
- Jie Fang
- Engine Power（KW）
- Da Chai 257
- Front Axle/Rear Axle（t）
- 5//5/10/10
- Gearbox
- 9 Speed Manual Transmission
- Number of Axles
- 4
- Wheelbase (mm)
- 1900+4500+1350
- Emission standard
- Euro 3-6
- Steering
- LHD/RHD
Standard Components Details
Vacuum pressure reducing valve
Discharge valve
Discharge box fire extinguisher
Anti-Corrosion Tank Body
Tank lining plastic process
Bottom emergency shut-off valve
Application Scenarios
Chemical Liquid Tank Truck Application scenarios
Our Chemical Liquid Tank Truck Widely used in chemical, petroleum, pharmaceutical, coating, environmental protection and other industries, suitable for:
Transportation of corrosive liquids such as strong acid, strong alkali and salts
Transportation of flammable and explosive media such as organic solvents, oils and resins
Transportation of non-hazardous liquids such as food-grade liquids, water purifiers and water reducers
Medium and long-distance transportation in industrial parks, ports, chemical plants, logistics centers, etc.

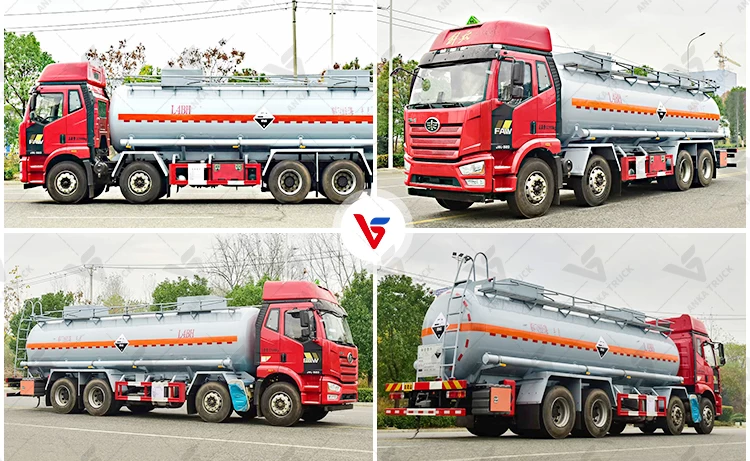

Factory Display
Built for chemical producers and acid distributors running scheduled drops, water and wastewater works taking in coagulants and disinfectants, and fleet operators adding corrosive capacity without buying a second vehicle type. Build detail is settled at order stage rather than pulled off a shelf: 316L or 304 stainless in place of the PE-lined shell, a chemical pump for self-priming and self-discharging, a divided barrel for more than one medium per run, or ADR-pattern manholes with a bottom emergency valve for regulated markets. Tell us the medium, the concentration and the route, and we will match the lining, valve trim, compartment split and load rating to it before production.
Packing and Delivery
*Packing--Waxed or nude, covered with tarpaulin. *Shipping--Small units ship in 20GP, 40GP or 40HQ containers; larger units ship break-bulk, by bulk carrier or Ro-Ro, or as you require.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
