FOTON 5CBM Mini Refuse Compactor for Tight Street Waste
-
When You'll Get It:Jan 07 - Jan 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.

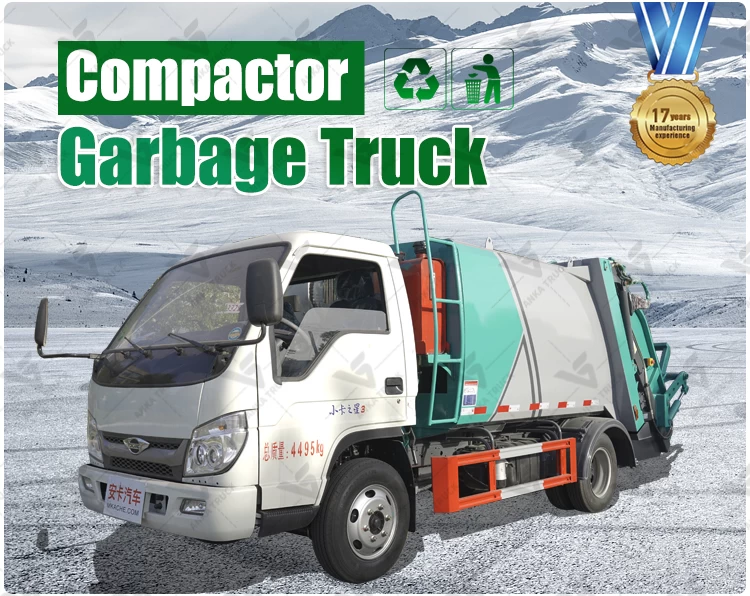

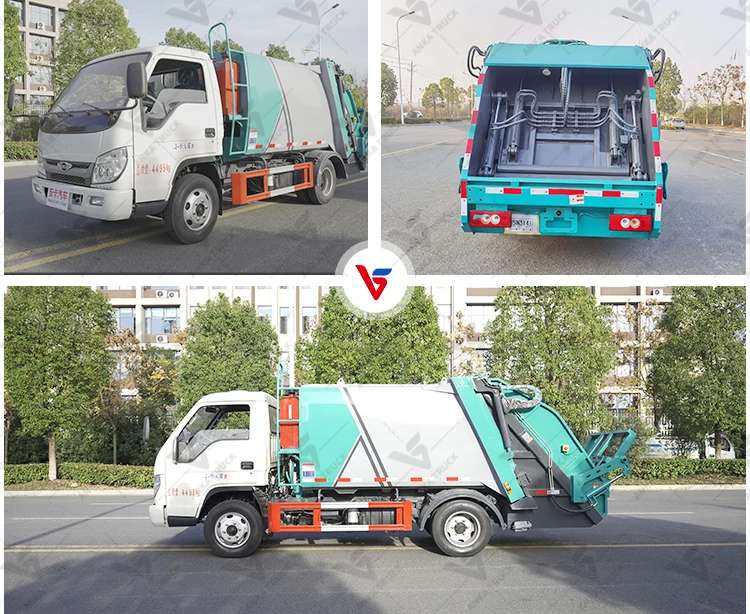

FOTON 5CBM Mini Refuse Compactor for Tight Street Waste
Designed for historic old-town alleyways, narrow village lanes, and height-restricted basement parking facilities, the FOTON 5CBM Mini Refuse Compactor Truck provides exceptional tight-space maneuverability with powerful volume reduction. Built on a low-profile 5,500 kg gross weight chassis driven by a fuel-efficient 120HP turbo diesel engine, it easily navigates narrow passages without blocking traffic. The 5m³ Q345 manganese steel body operates with a rapid bidirectional hydraulic slide-and-scraper mechanism (≤18s loading cycle), delivering up to a 3:1 compaction ratio.
Technical Specifications
- Kerb Weight (Kg)
- 3965
- Overall Dimensions (mm)
- 5995×2090×2450
- Box Volume (m³)
- 5
- Box Body Material Quality
- T355 Manganese Steel
- Sewage Tank Capacity (L)
- 600
- Operating Mode
- Automatic+Manual
- Maximum Speed (km/h)
- 105
- Brand Name
- Foton
- Fuel Type
- Diesel
- Engine Power（kw）
- 85
- Front Axle/Rear Axle (t)
- 1.5/2.5
- Gearbox Model
- 5-Speed Manual
- Number of Axles
- 2
- Wheelbase (mm)
- 2850
- Number of Tires
- 6
Standard Components Details
Rear Loader Option
❶ Arm Swing Loader
❷ Rear Triangular Bucket Loader
❸ Bin Lifter Loader
❹ Full Floor Loader
Factory Display
To guarantee zero roadside leakage along residential alleyways, the vehicle features an integrated 550L anti-drip wastewater retention tank equipped with tight-sealing drainage ball valves. Sanitation crews benefit from intuitive rear push-button electrical controls and backup manual hydraulic levers for dependable all-weather operations. We offer compact rear lifter attachments compatible with standard 120L and 240L EN840 plastic dustbins. Please submit your narrow street width limits, basement clearance drawings, or municipal tender specifications, and our dedicated engineering team will configure the optimal wheelbase and body layout for your fleet.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
