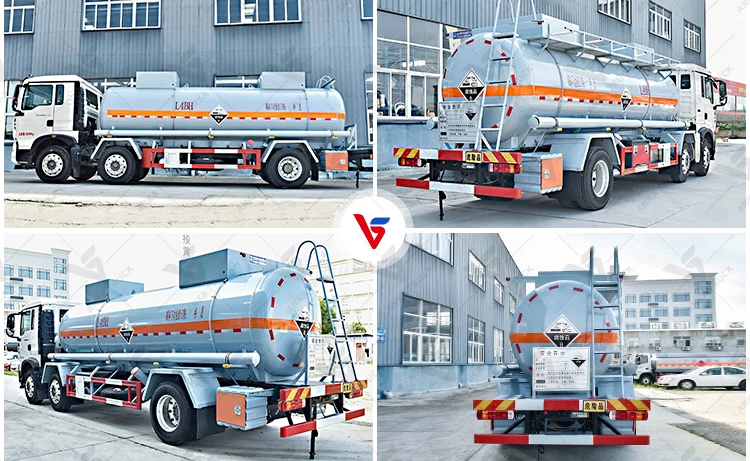

HOWO 6x2 25.5 Ton Chemical Tanker Truck with Lined L4BH Barrel
-
When You'll Get It:Jan 04 - Jan 08
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
Narrow plant roads and tight unloading aprons favour a lighter, shorter truck - and a 6x2 with a 10,500 kg curb keeps far more of its 25,500 kg gross available for cargo than an eight-wheeler can. That is the case for this HOWO: roughly fifteen tonnes of the gross budget stays free for liquid, which suits shuttle work between a reagent store and a plant that consumes it every day. Because the chassis is rigid, with two steer axles up front and one drive axle behind, it squeezes into tight bays and reverses onto sloping docks that a tractor-trailer would have to shunt into.
Technical Specifications
- Curb Weight(Kg)
- 10500
- Boundary Dimension(mm)
- 10010×2550×3320
- Tank Volume(m³)
- 14
- Tank Material
- Q235 Carbon Steel
- Mouth of tank
- One/Tow
- Discharge Opening
- Lined With Four-Fluorine Ball Valve
- Maximum Speed（km/h）
- 80
- Trade Name
- Sinotruk
- Engine Power（KW）
- Sinotruki 228
- Front Axle/Rear Axle（t）
- 5/5/11
- Gearbox
- 10 Speed Manual Transmission
- Number of Axles
- 3
- Wheelbase (mm)
- 1800+4600
- Emission standard
- Euro 3-6
- Steering
- LHD/RHD
Standard Components Details
Vacuum pressure reducing valve
Discharge valve
Discharge box fire extinguisher
Anti-Corrosion Tank Body
Tank lining plastic process
Bottom emergency shut-off valve
Application Scenarios
Chemical Liquid Tank Truck Application scenarios
Our Chemical Liquid Tank Truck Widely used in chemical, petroleum, pharmaceutical, coating, environmental protection and other industries, suitable for:
Transportation of corrosive liquids such as strong acid, strong alkali and salts
Transportation of flammable and explosive media such as organic solvents, oils and resins
Transportation of non-hazardous liquids such as food-grade liquids, water purifiers and water reducers
Medium and long-distance transportation in industrial parks, ports, chemical plants, logistics centers, etc.
Factory Display
For buyers in hot or cold regions, the build sheet can be shifted: 304 or 316L shells, a priming pump set for unloading, two or three separate chambers to keep incompatible reagents apart, and EU-style covers with isolation valves. Give us the duty list, the strengths and the yearly volume; chamber layout, lining specification and papers are fixed before steel is cut.
Packing and Delivery
*Packing--Waxed or nude, covered with tarpaulin. *Shipping--Small units ship in 20GP, 40GP or 40HQ containers; larger units ship break-bulk, by bulk carrier or Ro-Ro, or as you require.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
