JAC 5CBM Mini Refuse Compactor for Gated Community Waste
-
When You'll Get It:Jan 07 - Jan 11
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
JAC 5CBM Mini Refuse Compactor for Gated Community Waste
Specifically engineered for gated residential estates, historic downtown alleyways, and height-restricted basement access routes, the JAC 5CBM Mini Refuse Compactor Truck provides exceptional low-clearance maneuverability with high-density waste compaction. Built on a lightweight 5,000 kg gross weight chassis driven by a fuel-efficient 120HP turbo diesel engine, it easily navigates narrow lanes and tight turning corners. The 5m³ Q345 high-strength manganese steel body operates with a rapid bidirectional hydraulic slide-and-scraper mechanism (≤18s loading cycle), delivering up to a 3:1 volume reduction ratio.
Technical Specifications
- Kerb Weight (Kg)
- 3865
- Overall Dimensions (mm)
- 5995×2000×2450
- Box Volume (m³)
- 5
- Box Body Material Quality
- T355 Manganese Steel
- Sewage Tank Capacity (L)
- 600
- Operating Mode
- Automatic+Manual
- Maximum Speed (km/h)
- 100
- Brand Name
- JAC
- Fuel Type
- Diesel
- Engine Power（kw）
- 93
- Front Axle/Rear Axle (t)
- 2.5/4.5
- Gearbox Model
- 5-Speed Manual
- Number of Axles
- 2
- Wheelbase (mm)
- 2850
- Number of Tires
- 6
Standard Components Details
Rear Loader Option
❶ Arm Swing Loader
❷ Rear Triangular Bucket Loader
❸ Bin Lifter Loader
❹ Full Floor Loader

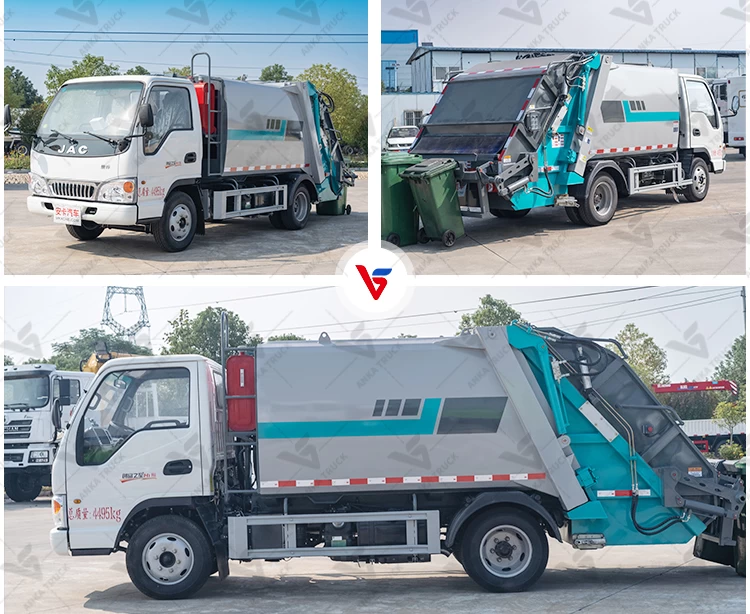

Factory Display
To guarantee zero roadside leakage along residential pavements, the vehicle features an integrated 550L anti-drip wastewater retention tank equipped with tight-sealing drainage ball valves. Sanitation workers benefit from intuitive rear push-button electrical controls and emergency manual hydraulic levers for dependable daily operations. We offer compact rear lifter attachments compatible with standard 120L and 240L EN840 plastic dustbins. Please submit your community road width limits, container drawings, or municipal tender specifications, and our dedicated engineering team will configure the optimal wheelbase, hydraulic setup, and body layout for your fleet.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
