SHACMAN 4x2 12000L Fuel Truck for Station Delivery
-
When You'll Get It:Jan 09 - Jan 13
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.

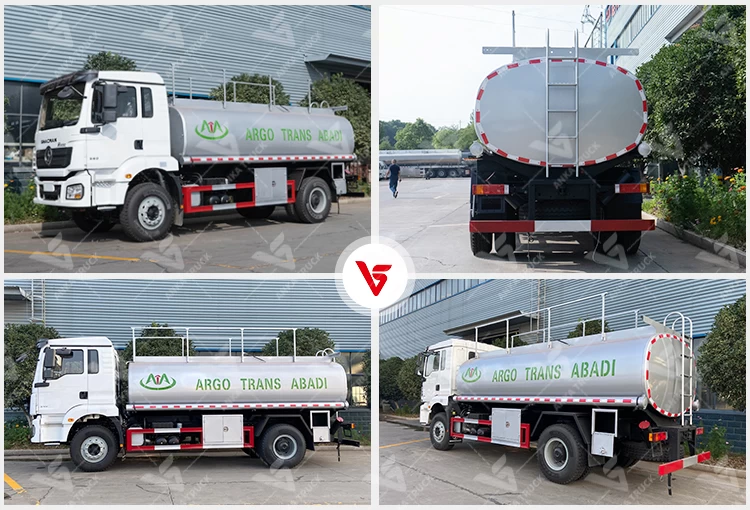

Lead A fuel truck doubles as the moving signboard of a distributor's business, which is why this SHACMAN 4x2 leaves the yard wearing a client's own colors - roundel and company lettering printed on a silver-grey tank that borrows the polished look of a far larger fleet. Under the paint the vessel is honest carbon steel, 5mm plate, and the 4x2 layout suits crowded yards and modest road widths without giving up payload. The H3000 cab airs a bunk for the second driver, while the Weichai engine and nine-speed box keep service simple for a one-truck operator.
Technical Specifications
OUTPUT
- Curb Weight(Kg)
- 7800
- Boundary Dimension(mm)
- 8465×2500×3100
- Tank Volume(m³)
- 15
- Tank Body Material
- 304 Stainless Steel/Q235 Carbon Steel
- Mouth of tank
- European standard
- Gear oil pump flow(m³/h)
- 60
- Maximum Speed（km/h）
- 80
- Trade Name
- SHACMAN
- Engine Power（KW）
- Weichai 220KW
- Front Axle/Rear Axle（t）
- 7.5/13
- Gearbox
- 9 Speed Manual Transmission
- Number of Axles
- 2
- Wheelbase (mm)
- 4600
- Emission standard
- Euro 3-6
- Steering
- LHD/RHD
Standard Components Details
Breathing Valve
European Manhole Cover
Flame Arrester
Emergency Shut-off Switch
API Valve
Static Discharge Reel
Extinguisher
Toolbox
Ladder and Safety Rail
Common Optional Components
1. Material Choices: Aluminum, Stainless-Steel, or Carbon Steel construction.
2. Multiple compartment configurations.
3. Fuel dispenser
4. Air suspension,Leaf spring suspension for choice
5. Oil pump material choices,Aluminum, Stainless-Steel
6. Flow meter
Factory Display
Closing For distributors in Southeast Asia and Africa who want a tanker that advertises while it works, this SHACMAN 4x2 keeps the middle of the market honest: 12,000 liters on a single drive axle that costs little to run, and a paint line ready for any logo you bring. Aluminium retrofit, divided compartments, metering and export-spec hatch fittings remain on the options list. Send your livery artwork with the route plan, and the specification sheet arrives with our quotation.
Packing and Delivery
*Packing--Waxed or Nude, and covered with tarpaulin
*Sea Shipping--Based on truck dimensions,Container Vessel,Bulk Carrier or Ro-Ro Vessel for choice
*Road Shipping--By Truck or Road
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
