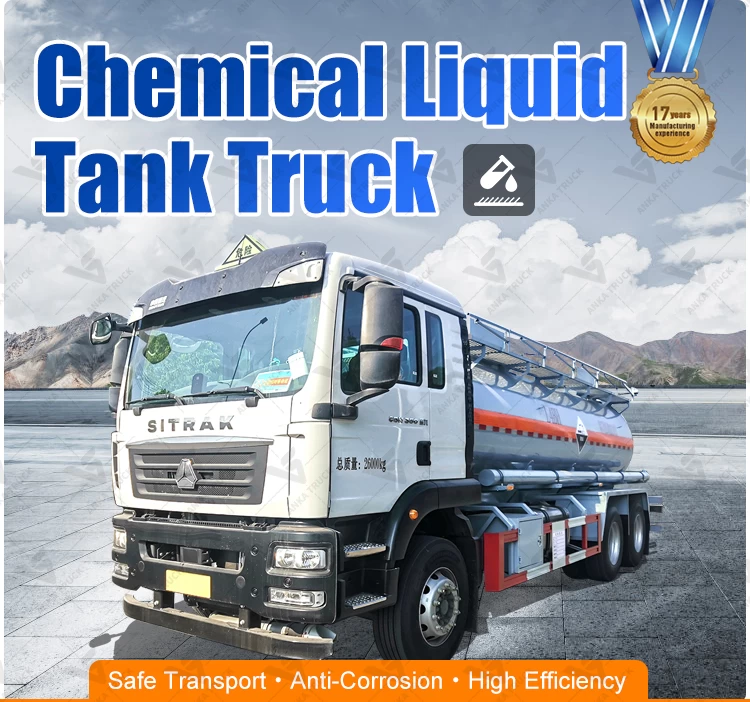

SITRAK 6x4 13 CBM PE-Lined Acid Tanker for Chemical Plants
-
When You'll Get It:Jan 04 - Jan 08
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
Chemical works and sewage plants stop moving reagent by the drum once throughput climbs; they want a road unit whose inner surface will not give way to chloride attack, and documentation that clears inspection at both ends of the trip. This SITRAK 6x4 pairs an 18 CBM barrel with an L4BH vessel marking - the ADR code a loading clerk reads to confirm a hermetically sealed liquid unit with protected belly outlets. Being a rigid chassis rather than an articulated combination, it threads narrow factory gates and backs onto ramps that long combinations cannot use.
Technical Specifications
- Curb Weight(Kg)
- 11510
- Boundary Dimension(mm)
- 9605×2550×3380
- Tank Volume(m³)
- 13
- Tank Material
- Q235 Carbon Steel
- Mouth of tank
- One/Tow
- Discharge Opening
- Lined With Four-Fluorine Ball Valve
- Maximum Speed（km/h）
- 80
- Trade Name
- SITRAK
- Engine Power（KW）
- Wei Chai 257
- Front Axle/Rear Axle（t）
- 5/5/11
- Gearbox
- 9 Speed Manual Transmission
- Number of Axles
- 3
- Wheelbase (mm)
- 4275+1400
- Emission standard
- Euro 3-6
- Steering
- LHD/RHD
Standard Components Details
Vacuum pressure reducing valve
Discharge valve
Discharge box fire extinguisher
Anti-Corrosion Tank Body
Tank lining plastic process
Bottom emergency shut-off valve
Application Scenarios
Chemical Liquid Tank Truck Application scenarios
Our Chemical Liquid Tank Truck Widely used in chemical, petroleum, pharmaceutical, coating, environmental protection and other industries, suitable for:
Transportation of corrosive liquids such as strong acid, strong alkali and salts
Transportation of flammable and explosive media such as organic solvents, oils and resins
Transportation of non-hazardous liquids such as food-grade liquids, water purifiers and water reducers
Medium and long-distance transportation in industrial parks, ports, chemical plants, logistics centers, etc.

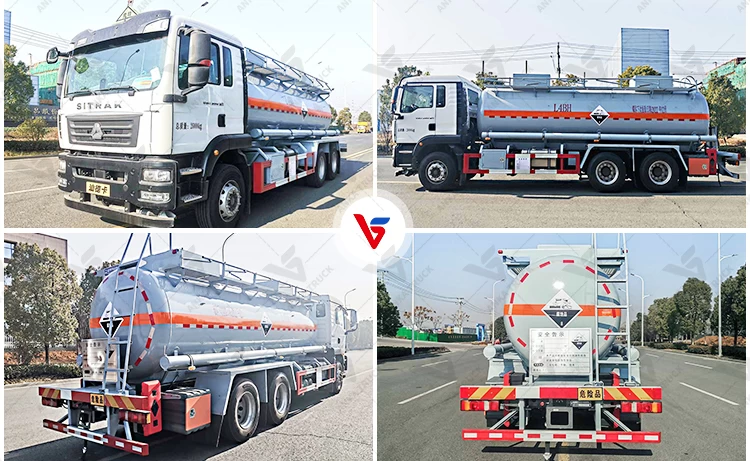

Factory Display
Fleets handling muriatic acid, bleach-grade hypochlorite, caustic liquors or comparable category 8 media can choose stainless construction, a transfer pump for self-priming offload, separate bays for several reagents, or European-standard hatches and panic shut-off valves. Send the medium, its concentration and your route profile; our engineers will confirm liner, trim and paperwork before production.
Packing and Delivery
*Packing--Waxed or nude, covered with tarpaulin. *Shipping--Small units ship in 20GP, 40GP or 40HQ containers; larger units ship break-bulk, by bulk carrier or Ro-Ro, or as you require.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
