DONGFENG 10-Ton Flatbed Tow Truck for Truck Recovery
-
When You'll Get It:Jan 06 - Jan 10
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
DONGFENG 10-Ton Flatbed Tow Truck for Truck Recovery
Purpose-built for highway incident clearance, heavy automobile dealerships, and municipal transport dispatchers, this DONGFENG 10-ton class medium flatbed wrecker provides robust dual-vehicle recovery across intercity expressways and industrial corridors. Mounted on an 18,000 kg gross weight chassis fitted with a 210 hp Cummins B6.2 diesel engine and a Fast 6-speed manual transmission, it generates 820 N·m of peak pulling torque for heavy-duty gradeability and dependable long-distance towing stability. The heavy-duty carrier deck measures 7.6 meters long by 2.5 meters wide with 5mm anti-skid diamond steel plating rated for up to 10-tonne vehicle payloads, supported by an 80 kN to 100 kN hydraulic cable winch and a high-capacity 5-tonne rear underlift fork. This heavy rollback configuration allows crews to slide and tilt the extended bed down to ground level for winching mid-sized delivery vans, pickup trucks, or light-duty trucks, whilst simultaneously towing a second disabled vehicle using the aft tire cradle.
Highlights at a glance
- Extended 7.6m 10-Ton Sliding Deck: Built with a 7,600 × 2,500 mm reinforced 5mm checkered steel platform engineered for heavy payloads, equipped with a folding hydraulic tail ramp for loading delivery trucks, vans, and full-sized SUVs. - Powerful 1+2 Dual-Vehicle Recovery: Haul one heavy casualty on the tilted flatbed while simultaneously towing a trailing 5-tonne commercial vehicle via the rear telescopic underlift fork. - High-Torque 210 HP Cummins Diesel Engine: Driven by a robust B6.2 6.2L 6-cylinder turbo diesel engine producing 820 N·m of torque, paired with a Fast 6-speed manual transmission for superior gradeability. - Heavy-Duty Hydraulic Pulling Winch: Equipped with a high-capacity 8-ton to 10-ton hydraulic winch drum, 22m high-tensile steel wire rope, and directional roller fairleads for steep vehicle recoveries.
Technical Specifications
- CURB WEIGHT (KG)
- 11420
- BOUNDARY DIMENSION (MM)
- 8070×2550×2830
- The Rear Bracket Arm Carries The Weight(t)
- 10
- Plate Bearing Weight（t）
- 10
- Winch Pull（t）
- 10
- Number of Passengers in the Cab(People)
- 3
- Maximum Speed（km/h）
- 89
- Trade Name
- Dong Feng
- Type of fuel
- Diesel Oil
- Engine Power
- Cummins 169
- Gearbox
- 8 Speed Manual Transmission
- Number of Axles
- 2
- Wheelbase
- 5000
- Number of Tires
- 6
- Steering
- LHD / RHD Optional
Standard Components Details
Flatbed Wrecker Type Options
Flatbed Wrecker Type Options

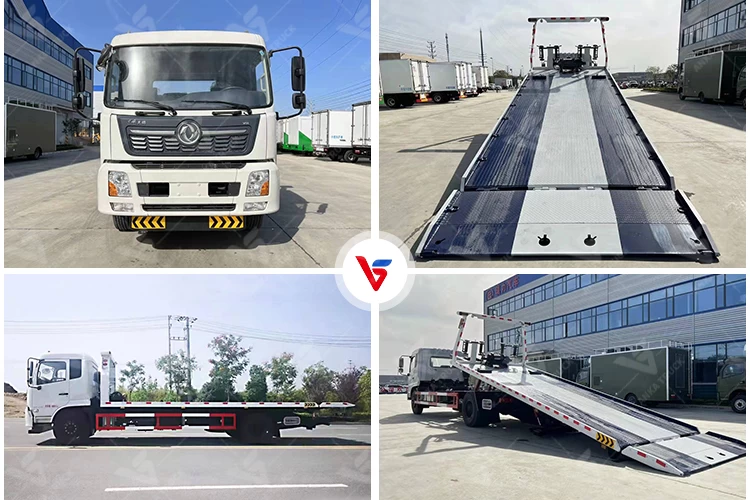

Factory Display
Deck approach incline angles and rear underlift hauling capacities are determined by casualty vehicle axle spacing, chassis curb mass, front overhang profile, and local highway traffic regulations. Kindly submit your required breakdown vehicle parameters, operational corridor conditions, incident site photographs, or custom body specifications. Our commercial transport engineering group will configure the ideal flatbed deck dimensions, hydraulic winch pulling force, aft underlift travel stroke, and cabin steering orientation (LHD or RHD) specifically tailored for your highway recovery enterprise.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
