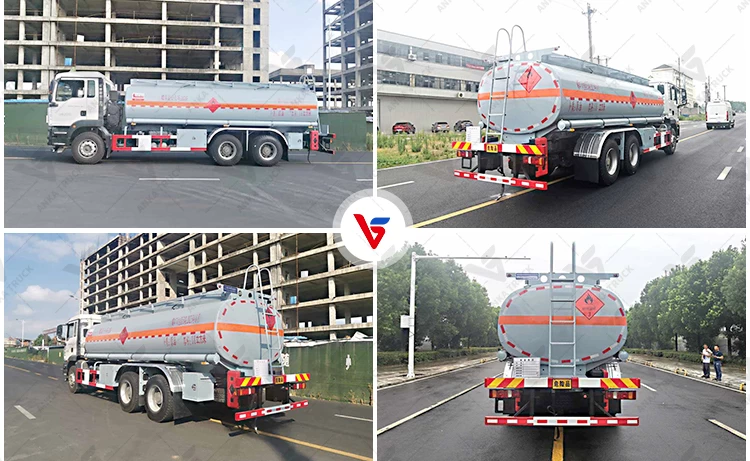

SITRAK 6x4 18 CBM Flammable Liquid Carrier on Depot Filling Duty
-
When You'll Get It:Jan 06 - Jan 10
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
Fuel retail runs on repetition, not heroics: the same depot, the same forecourt, the same 40 kilometres, day after day. A truck earns its keep on how little it costs to keep repeating that loop, which is why this three-axle SITRAK is specified with 18,000 litres of capacity, ten wheels and a 25-tonne plate rating. Curb weight is 11,575 kg, so roughly 13,400 kg of product can be carried legally; the wheelbase runs 4,575 + 1,400 mm on 11.00R20 rubber, and the rear bogie holds ratio 4.11 for hills.
Technical Specifications
- Curb Weight(Kg)
- 11575
- Boundary Dimension(mm)
- 9880×2550×3400
- Tank Volume(m³)
- 18
- Tank Material
- Q235 Carbon Steel
- Mouth of tank
- One/Tow
- Discharge Opening
- Lined With Four-Fluorine Ball Valve
- Maximum Speed（km/h）
- 80
- Trade Name
- Sinotruk
- Engine Power（KW）
- Wei Chai 257
- Front Axle/Rear Axle（t）
- 5/11/11
- Gearbox
- 10 Speed Manual Transmission
- Number of Axles
- 3
- Wheelbase (mm)
- 4575+1400
- Emission standard
- Euro 3-6
- Steering
- LHD/RHD
Standard Components Details
Vacuum pressure reducing valve
Discharge valve
Discharge box fire extinguisher
Anti-Corrosion Tank Body
Tank lining plastic process
Bottom emergency shut-off valve
Application Scenarios
Chemical Liquid Tank Truck Application scenarios
Our Chemical Liquid Tank Truck Widely used in chemical, petroleum, pharmaceutical, coating, environmental protection and other industries, suitable for:
Transportation of corrosive liquids such as strong acid, strong alkali and salts
Transportation of flammable and explosive media such as organic solvents, oils and resins
Transportation of non-hazardous liquids such as food-grade liquids, water purifiers and water reducers
Medium and long-distance transportation in industrial parks, ports, chemical plants, logistics centers, etc.
Factory Display
For depots running long drop rounds the build can be stretched: an alloy drum to shed dead weight, two compartments for two grades, a metered dispensing set with reel and nozzle, and the EU ADR set with a customs dossier. Send the grades, the drop size and the roads; we confirm chamber count, line lengths and paperwork at the drawing stage.
Packing and Delivery
*Packing--Waxed or nude, covered with tarpaulin. *Shipping--Small units ship in 20GP, 40GP or 40HQ containers; larger units ship break-bulk, by bulk carrier or Ro-Ro, or as you require.
1.Q:Are you a factory or a trade company?
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
